Description

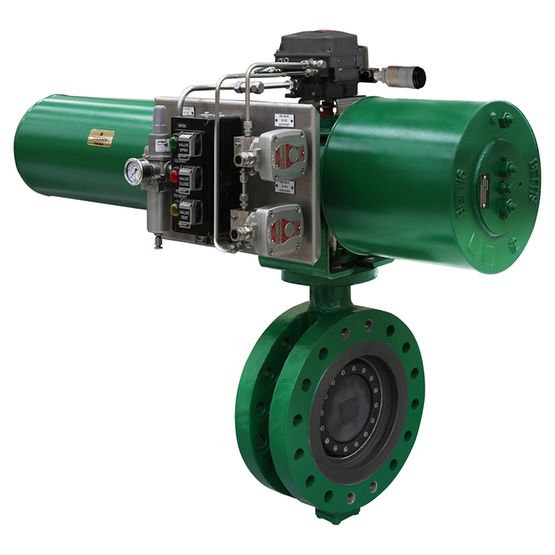

| Valve Type | Triple Offset Valve |
|---|---|
| Actuation | Scotch Yoke, Spring-return, Double-acting |
| Valve Size | DN 80-2800 (NPS 3 - 112) |
| Pressure Ratings | ASME class 150 -1500; EN PN 10 -160 |
| Materials | Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, High Temperature Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex |
| NACE | MR 0103 / ISO 17945 and MR 0175 / ISO 15156 compliant* (*based on material) |
| Shutoff Class | ISO 5208, EN 12266 - 1, API 598 |
| Communication Protocol | HART, Fieldbus |
| Power Source | Pneumatic |
| Design and Manufacturing Standards | API 609, EN 593; ASME B 16.34, EN 12516 |
| Fire Safety Test Standards | API 607 |
| Safety Integrity Level | SIL 3 capable |
| Area Classification | Welding, Fire Safety, Fugitive Emission |
| Certifications | CSA, FM, ATEX, IECEx, ABS Atex Directive 94/9 PED 97/23/EC IP66 / IP67M |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
