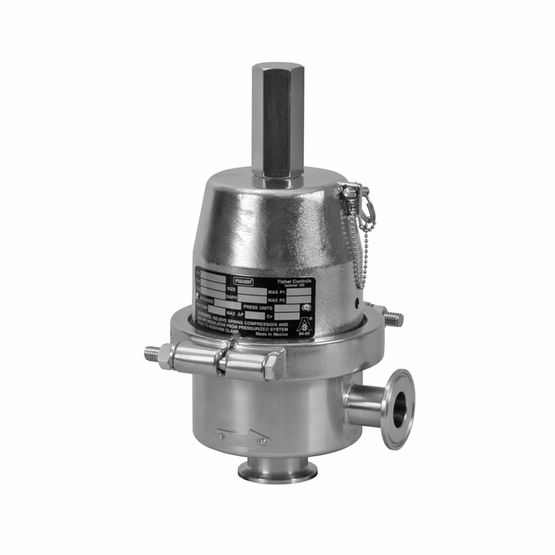

Fisher™ Type SR5 Sanitary Pressure Regulator

Description

Pressure RegistrationInternal
Temperature Capabilities-20° to 400°F / -28° to 204°C Depending on seat and diaphragm material
Body SizesNPS 0.5 / 0.75 / 1 / 1.5 / 1.5x1 / 2 / 3 | DN 15 / 20 / 25 / 40 / 40x25 / 50 / 80
End ConnectionsSanitary Tri-Clamp
Maximum Inlet Pressure210 PSIG / 14.5 bar
Maximum Outlet Pressure210 PSIG / 17.2 bar
Spring Ranges2 to 135 PSIG / 0.14 to 9.3 bar
Additional Technical DataFor additional technical information,?contact?your local?Sales Office?or refer to technical documentation.
