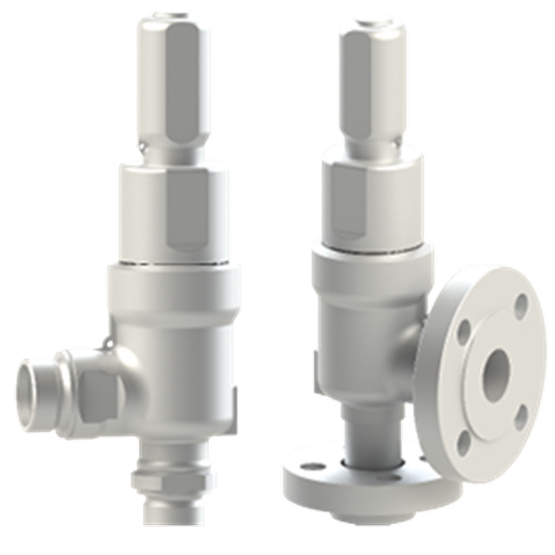

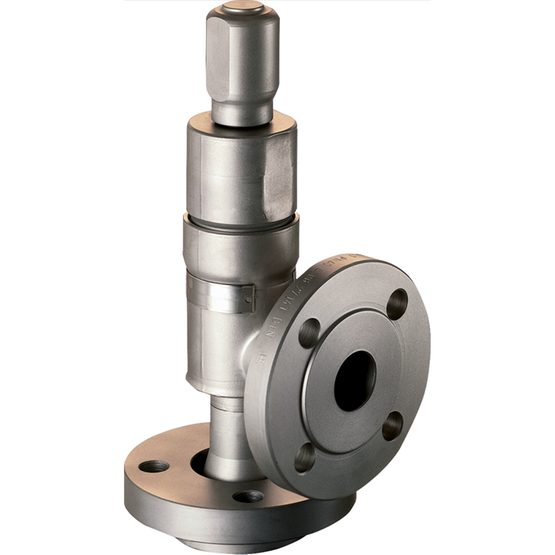

Description
Size Inlet | DN 15 - 25 NPS ½" - NPS 1" |
---|---|
Pressure rating | PN 10 - 40 Class 150 - 300 |
Temperature range | -200°C - + 200°C -300°F - +300°F |
Set pressure | 0.5 bar - 52 bar |
Orifice Diameter | 14 mm |
Design | Flanges and threads according to DIN, BS and ASME |
Body material | 1.0619 / A216 WCB 1.4408 / A351 CF8M |
Accessories | soft seat, lifting lever, test gag, reinforced bellows |
