Description
Certifications | PED, India Boiler Registration, ASME B31.1, CE |
---|---|
End Connection | Butt Weld |
Application | High Temp, General Service, Cogeneration, Boilers, Boiler, Biomass Boiler and Power Boiler, Balance of Plant, HRSG, Pumps, Valves & Manifolds, Clean Steam, Waste to Energy, Steam turbine |
Body Design | Long Pattern |
Material | Steel, Carbon Steel |
Operating Temperature | High Temperature, Greater Than 400 F (204 C) |
Pressure Class | ASME |
Process Connection Type | BWE |
Seat/Seal Type | Metal-to-Metal |
Shutoff Class | Class V (FCI 70-2) |
Standards | ASME B16.34 |

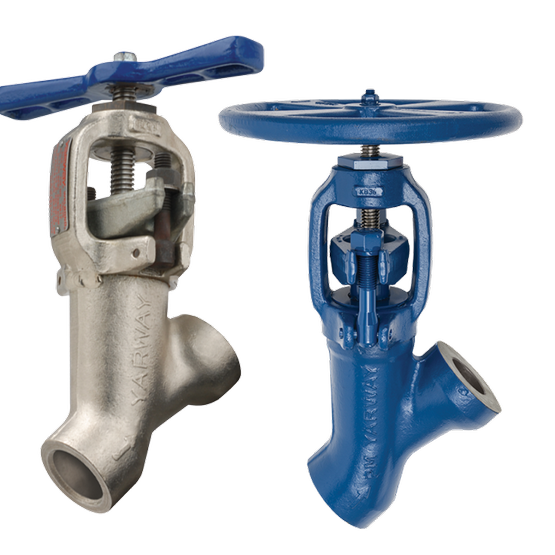

Style | Globe Valves |
Valve Size | NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 2 / DN 50, NPS 1-1/4 / DN 32, NPS 1-1/2 / DN 40, NPS 1/2 / DN 15, NPS 1 / DN 25 |
Valve Size Standard | NPS |
Valve Type | Globe |
